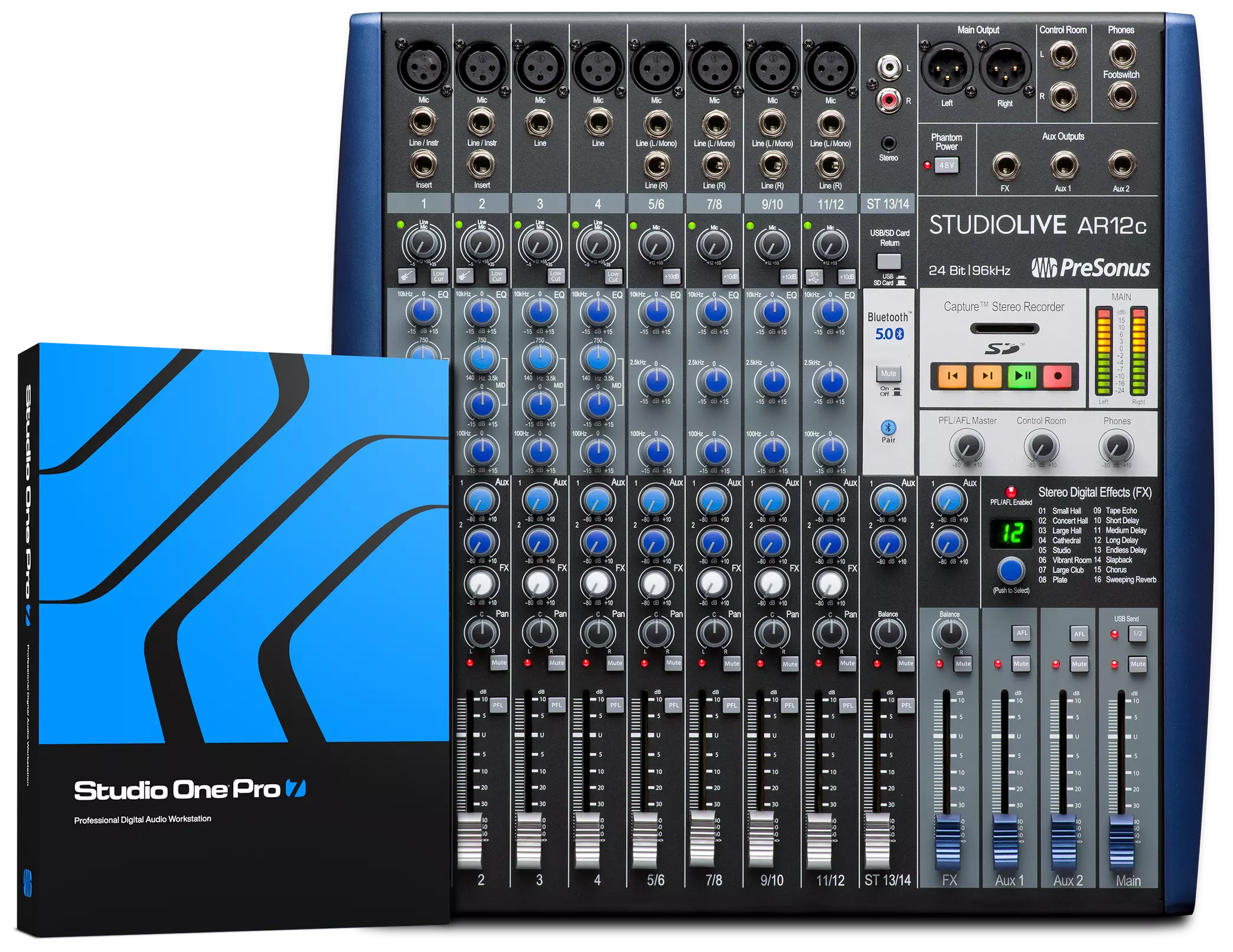

Product information
  • AUX outputs: 3
  • AUX send/stereo return: 2x AUX Send (pre), 1x AUX Send (post)
  • Audio Interface: 14x Input / 4x Output
  • Bluetooth-Streaming: yes
  • Channel EQ: 3-band EQ with Tunable Mids (Channel 1-4), 3-band EQ (Channel 5/6-11/12)
  • Channel Fader: 60 mm fader
  • Computer connection: via USB-C Port
  • Design: Desktop
  • Dimensions: 381 x 89 x 397 mm
  • Effects: Digital Effect (16 Presets)
  • Headphone Jack: 1x 6,3 mm Jack, Adjustable
  • Hi-Z Input: 2
  • Includes: Mixer, Power Cable
  • Inserts: for Channels 1-2
  • Line in: 12x 6,3 mm Jack (Channel 1-11/12), Cinch-L/R (Channel 13/14), 3,5 mm Jack (Channel 13/14)
  • Low-Cut: Switchable per Mic Channel (1-4)
  • Master-Fader: 60 mm fader
  • Mic-In: 8x XLR
  • Mono channels: 4
  • Multitrack-Recording: yes
  • Other in/outputs: Foot switch
  • Outputs: 2x XLR (L/R), 2x 6,3 mm Jack (Control Room), 3x 6,3 mm Jack (AUX Out), 6,3 mm Jack (Headphones)
  • Phantom Power: 48 V DC switchable
  • Power supply: 230 V AC, 50 Hz
  • Rack mounting: Optional
  • Resolution: 24-Bits
  • SD-Card-Player: Recorder/Player
  • Sampling-Rates: 96 kHz
  • Simultaneously usable inputs: 9
  • Stereo channels: 5
  • Subcategory: Analogue Mixer
  • Supported Storage Media: SD Card
  • Tape I/O: no
  • Weight: 5,4 kg
  • Studio One Artist plus Studio Magic plugin suite (DAW software) Included.
