Palmer PAN 01

Product Nr.: 10013245

Free shipping within germany

33 days return policy

€48.00

Price incl. VAT

✅ Online available Fast shipping!

Localstores

Walldorf: ✅ Available on site

Frankfurt: ✅ Available on site

Request a consultation appointment

See all Palmer products

Take back old products

Know-how
With us you not only get what you need - we also show you how it works! Go to the guides.

★★★★★

Thousands of satisfied customers.

4.84 out of 5 stars at Trusted Shops.

Product information

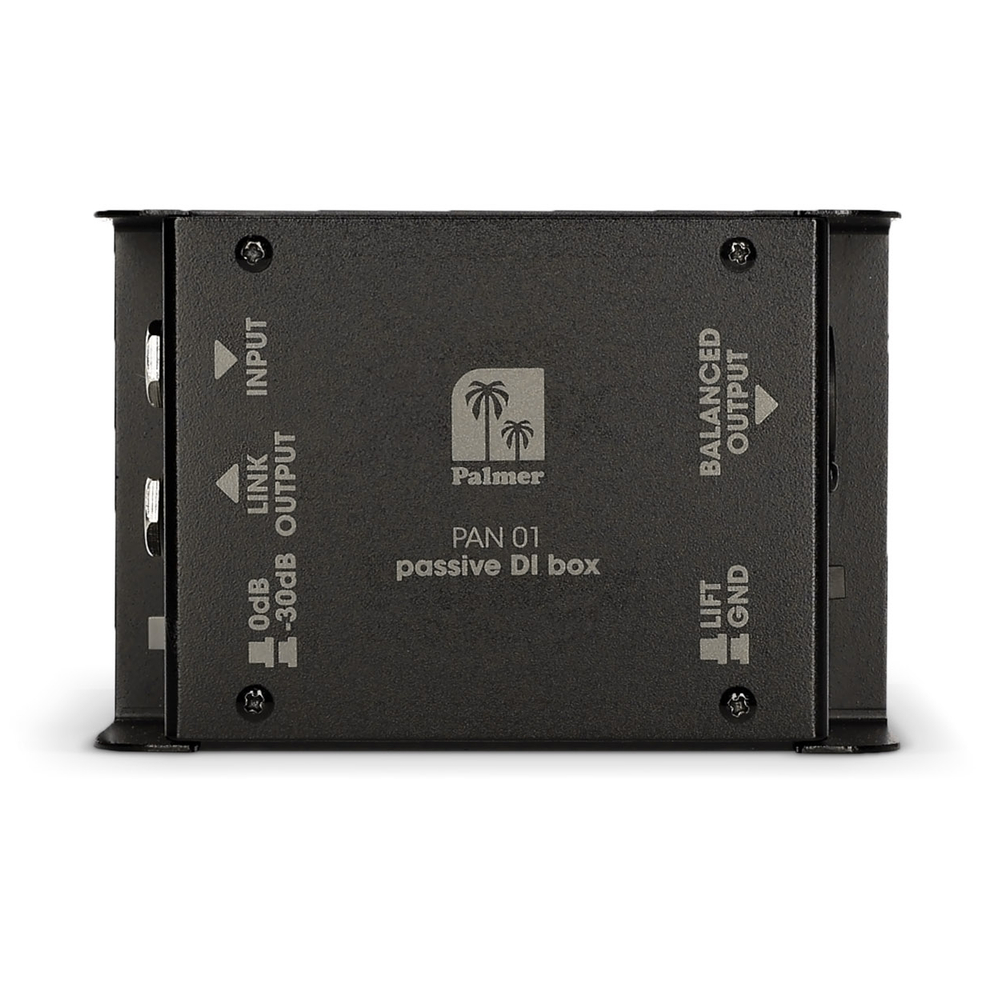

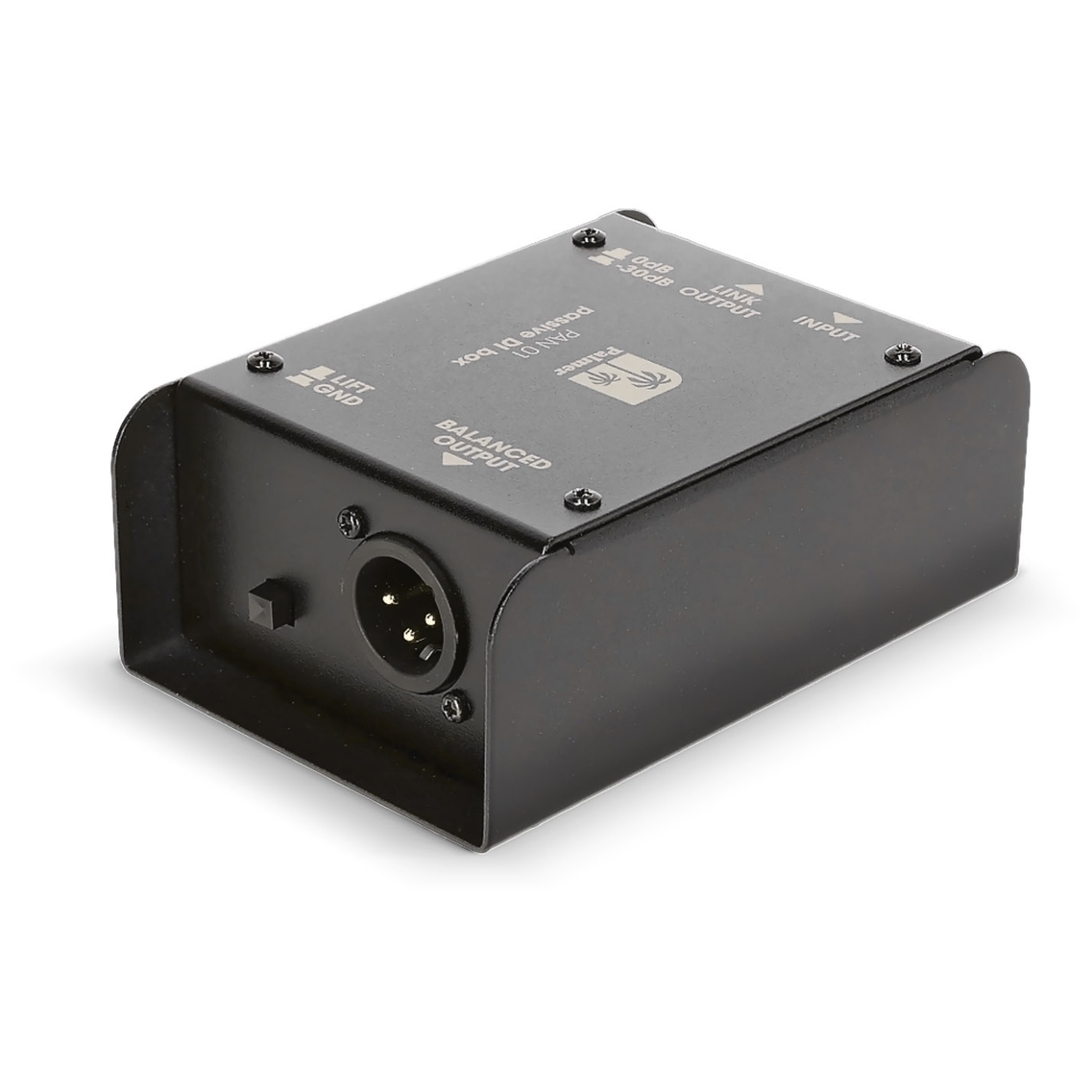

The Palmer PAN 01 is a passive DI box. Palmer PAN 01:

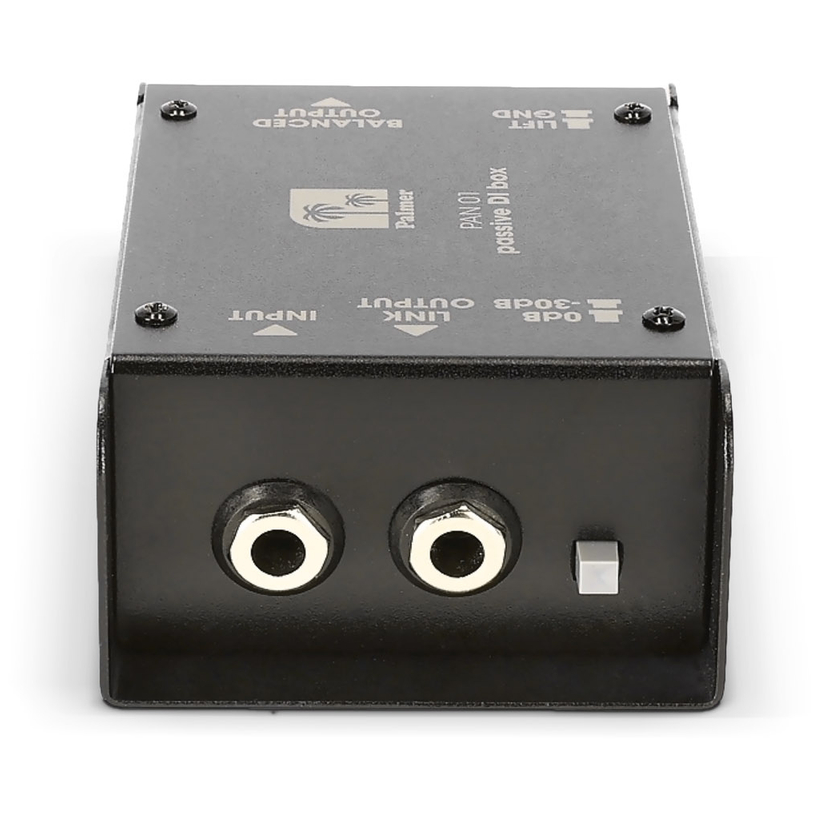

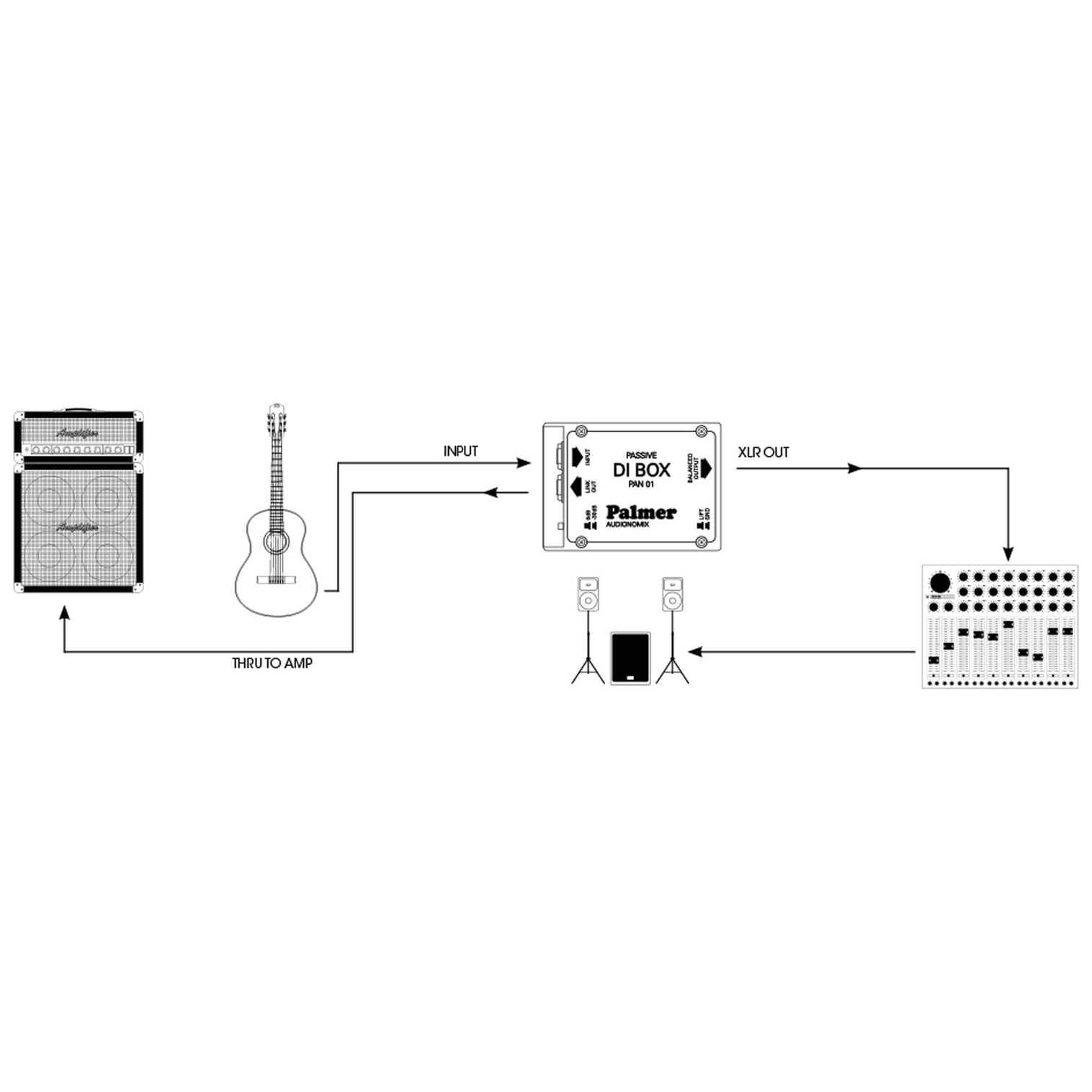

Jack input with parallel output for looping through the signal

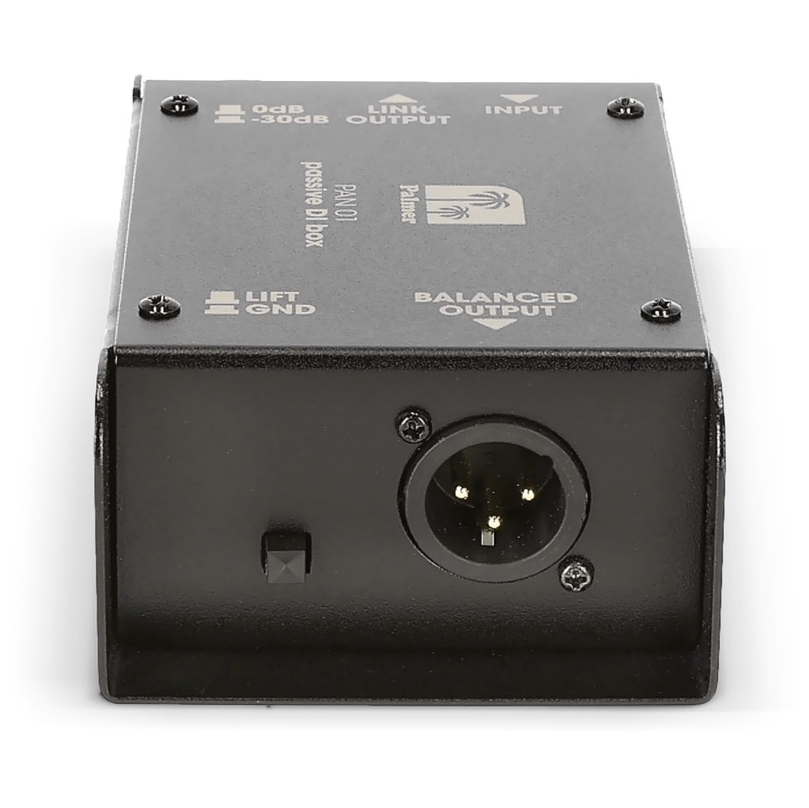

Transformer balanced XLR output
Input sensitivity switchable
Line and speaker signal levels can be processed
impedance: 68 kOhm, output impedance 600 Ohm
Transfer ratio of the symmetry transformer: 10: 1
maximum output level: +6 dBu
Ground lift switch
Sheet steel housing: 110 x 73 x 42 mm
outstanding quality: handmade in Germany!

Circuit: passive
Design: Desktop
Dimensions: 110 x 73 x 42 mm
Enclosure: Metal
Frequency Response: 20 Hz to 20 kHz
Ground Lift: Yes
Impedance: 60k Ohm
Includes: DI-Box
Inlet connections: 6,3 mm Jack
Input type: asymmetrical
Number of THRU outputs per input: 1
Number of inputs: 1
Output Impedance: 600 Ohm
Output connections: XLR
Outputs: 1
Output type: Symetrical
Pad: 0 dB / -30 dB
Subcategory: Passive DI-Box
Weight: 340 g
