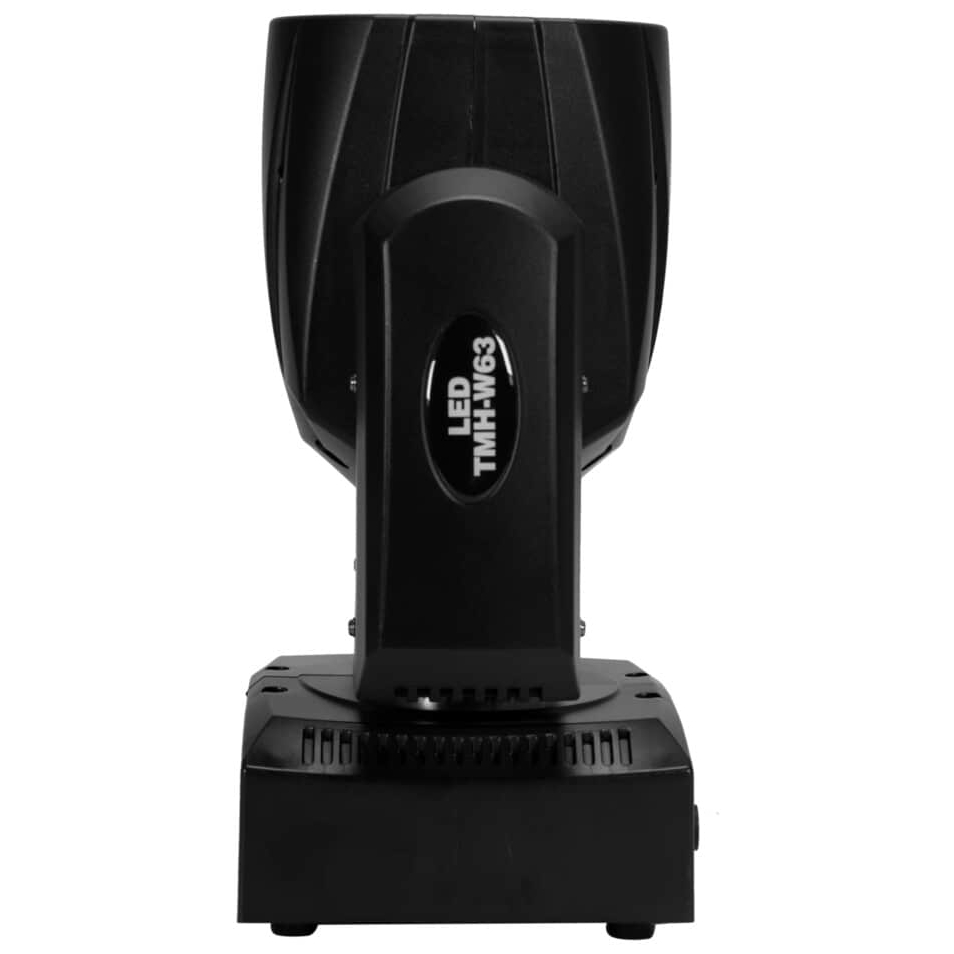

Eurolite TMH-W63 Moving-Head Zoom Wash B-Ware
Product Nr.:
20026610
Free shipping
within germany
33 days return policy
This item is a return or exhibitor's item which may have the box opened, the original packaging missing and/or slight signs of use. However, the item is fully functional and comes with a full guarantee.
Localstores
Walldorf:
Currently not at the location
Frankfurt:
✅ Available on site
More
session Service Team
Customer Service
Our competent employees are there for you:
Know-how
With us you not only get what you need - we also show you how it works! Go to the guides.
Product information
- Wash light with 7 strong 9-watt LEDs (4in1) and motorized zoom
- Positioning within 540° PAN and 220° TILT
- Continuous RGBW colour mixing
- Integrated show programs in auto and music mode
- Motion macros
- Variable speed strobe effect
- Strobe effect via random generator
- dimmer
- Motorized zoom with 6-29° radiation angle
- Exact positioning thanks to 16-bit resolution of the PAN/TILT movement
- Control board with 4-digit LED display for setting the DMX start address, PAN/TILT reverse, program, reset
- power supply: 100-240 V AC, 50/60 Hz
- Total connected load: 100 W
- Protection class: IP20
- power connection: P-Con power supply (blue), built-in version, power connection cable with protective contact plug (included)
- fuse: 5 x 20 mm, T 2 A fuse , replaceable
- Lamp type: LED lamp
- LED: 7 x high-power 9 W 4in1 QCL RGBW (homogeneous colour mixing)
- Max. tilting movement TILT: Exact positioning (16-bit resolution) 220°
- Max. panning movement PAN: Exact positioning (16-bit resolution) 540°
- equipment: Motorized zoom
- DMX channels: 15
- dmx input: 3-pin XLR (M) built-in version
- dmx output: 1 x 3-pin XLR (W) built-in version
- cooling: fan
- controls:
- Standalone
- Light J software
- DMX
- QuickDMX via USB (optional)
- Master/slave function
- Music control via microphone
- EASY SHOW
- radiation angle: 6 - 29°
- radiation angle (1/2 peak): 6 - 18°
- radiation angle (1/10 peak): 11 - 29°
- illuminance in lux (lx):
- Tight red (R) 1m: 7863 lx, 3m: 1074 lx, 6m: 269 lx
- Tight green (G) 1m: 15691 lx, 3m: 2179 lx, 6m: 549 lx
- Narrow blue (B) 1m: 2497 lx, 3m: 406 lx, 6m: 103 lx
- Narrow cold white (CW) 1m: 17115 lx, 3m: 2398 lx, 6m: 605 lx
- Narrow every 1m: 40258 lx, 3m: 5714 lx, 6m: 1432 lx
- Wide red (R) 1m: 1586 lx, 3m: 187 lx, 6m: 49 lx
- Far green (G) 1m: 3083 lx, 3m: 385 lx, 6m: 101 lx
- Wide blue (B) 1m: 568 lx, 3m: 73 lx, 6m: 20 lx
- Wide cold white (CW) 1m: 3372 lx, 3m: 407 lx, 6m: 106 lx
- Far every 1m: 8103 lx, 3m: 994 lx, 6m: 257 lx
- housing colour: Black
- Display type: 4-digit 7-segment LED display
- dimensions (WxDxH): 21 x 16 x 29.5 cm
- weight: 4.17 kg
- 16 bit Pan / Tilt movement: yes
- Bulbs: High Power RGBW LEDs
- Color/ Finish: Black
- Cooling: Fan cooled
- DMX channels (modes): 15 Channel
- DMX connection: 3 Pin
- DMX control: yes
- Dimensions: 210x160x295mm
- LED: yes
- LED performance: 9 W
- Master / Slave: yes
- Number of LEDs: 7
- Pan: 540°
- Programmable on device: yes
- Radiation Angle: 6° - 29°
- Sound to Light: yes
- Stand Alone Functionality: yes
- Strobe: yes
- Tilt: 220
- Weight: 4,17 kg
- directional characteristic: Wash
- power connection: Powercon
- power consumption: 100 W
